Regular price
€317,95
Sale price
€317,95
Regular price

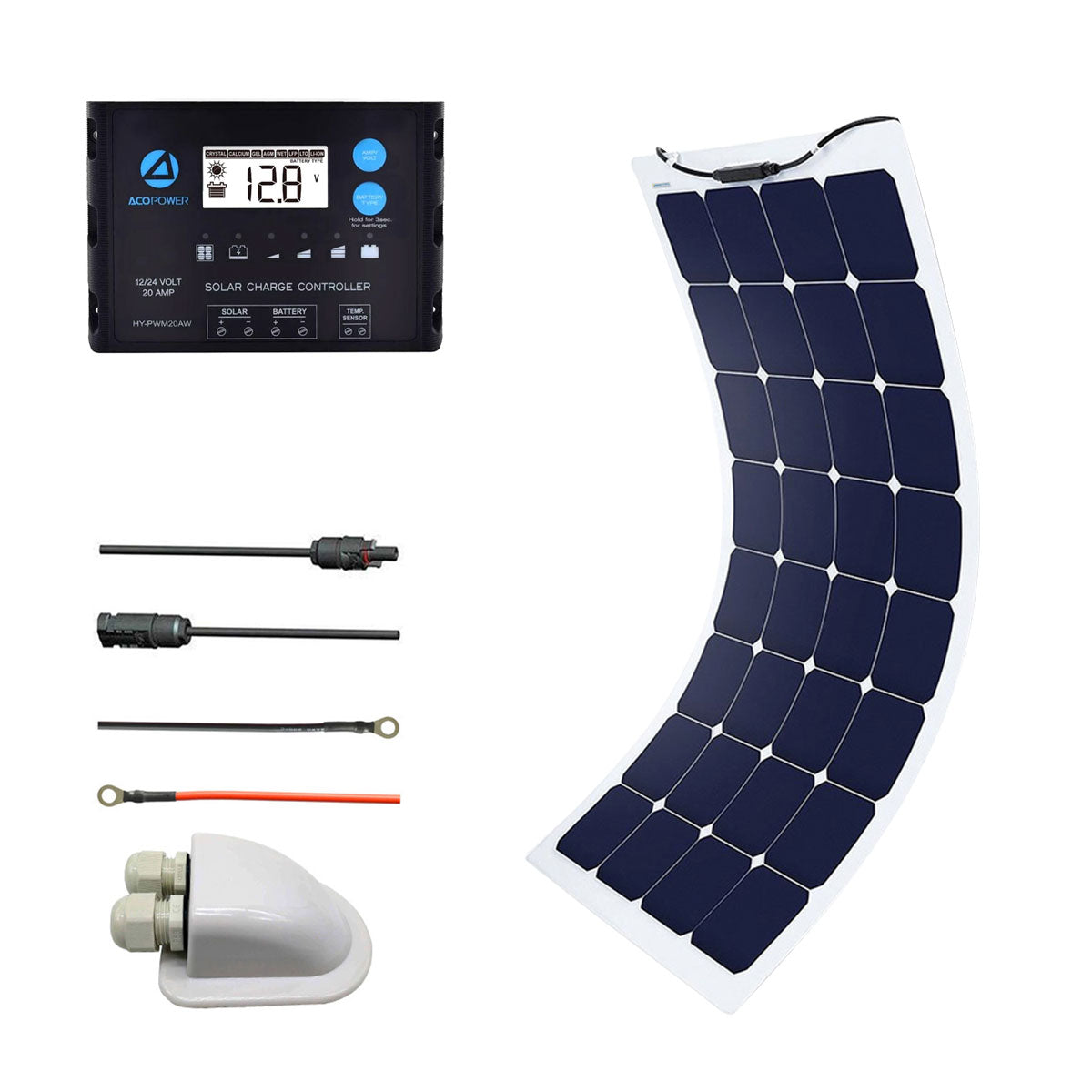

ACOPOWER Flexible Solar Panel Kit + MPPT / PWM Charge Controller
Black Friday Sale discount code will be automatically applied once you add the product to the cart, or reach to the checkout page.

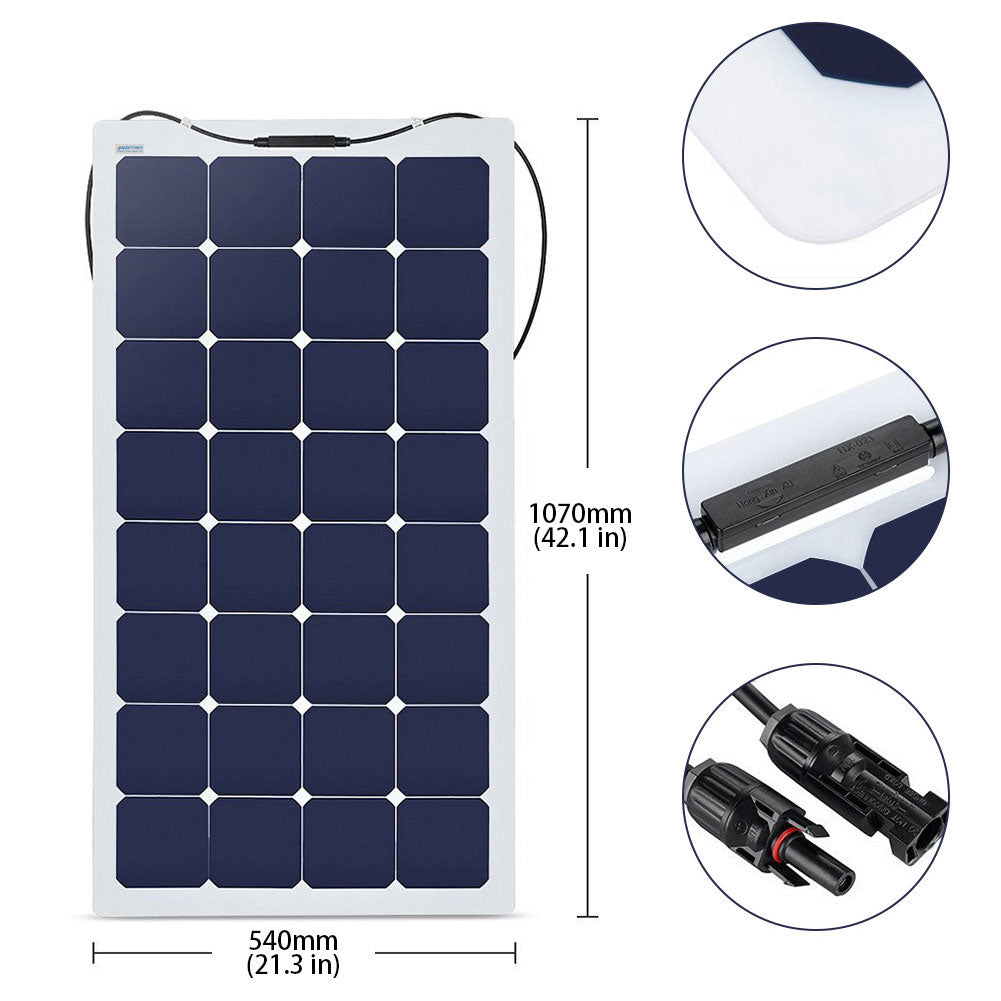

- ACOPOWER 110W FLEXIBLE SOLAR PANEL
- Maximum Power at STC (Pmax): 110W
- Maximum Operating Voltage (Vmp): 17.6V
- Maximum Operating Current (Imp): 6.25A
- Dimension: 1070x540x3mm / 44.7x21.3x0.12 in
- Open-Circuit Voltage (Voc): 20.8V
- Short-Circuit Current (Isc): 6.9A
- Operating Temperature: -20ºC to 65ºC
- Weight: 2.2kg / 4.85 lbs
- Maximum Power at STC (Pmax): 110W
- Maximum Operating Voltage (Vmp): 17.6V
- Maximum Operating Current (Imp): 6.25A
- Dimension: 1070x540x3mm / 44.7x21.3x0.12 in
- Open-Circuit Voltage (Voc): 20.8V
- Short-Circuit Current (Isc): 6.9A
- Operating Temperature: -20ºC to 65ºC
- Weight: 2.2kg / 4.85 lbs
- ACOPOWER 50A MPPT SOLAR CHARGE CONTROLLER
- Nominal System Voltage: 12v/24v/36v/48v DC Auto
- Rated Charge Current: 50A
- Max. PV Open Circuit Voltage: 150V/138V
- MPP Voltage Range: V(BAT)+2V～108V
- Working temperature: -25℃～+50℃
- RS485 Interface: RS485(RJ45)
- Dimension: 261*216*119mm
- Grounding: Common negative Design
- Battery Input Voltage Range: 8V～68V
- Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
- Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
- Storage temperature: -20℃～+70℃
- Enclosure: IP33
- Terminals: 16mm2/6AWG
- Nominal System Voltage: 12v/24v/36v/48v DC Auto
- Rated Charge Current: 50A
- Max. PV Open Circuit Voltage: 150V/138V
- MPP Voltage Range: V(BAT)+2V～108V
- Working temperature: -25℃～+50℃
- RS485 Interface: RS485(RJ45)
- Dimension: 261*216*119mm
- Grounding: Common negative Design
- Battery Input Voltage Range: 8V～68V
- Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
- Battery type :Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
- Storage temperature: -20℃～+70℃
- Enclosure: IP33
- Terminals: 16mm2/6AWG
- ACOPOWER MIDAS 40A MPPT SOLAR CHARGE CONTROLLER
- Nominal System Voltage: 12/24VDC Auto
- Rated Charge Current: 40A
- Max. PV Open Circuit Voltage: 100V (1) 92V (2)
- MPPT Voltage Range: (Battery Voltage+2V) ~72V
- Working temperature: -25℃～+50℃
- Terminals: Up to 6 AWG
- Dimension: 10x7.28x2.67 in / 255×185×67.8mm
- Grounding: Common negative
- Battery Input Voltage Range: 8V～32V
- Rated charge Power: 520W/12V 1040W/24V
- RS485 Interface: 5VDC/200mA(RJ45)
- Storage temperature: -20℃～+70℃
- Enclosure: IP33
- Weight: 3.75lbs / 1.7kg
- Nominal System Voltage: 12/24VDC Auto
- Rated Charge Current: 40A
- Max. PV Open Circuit Voltage: 100V (1) 92V (2)
- MPPT Voltage Range: (Battery Voltage+2V) ~72V
- Working temperature: -25℃～+50℃
- Terminals: Up to 6 AWG
- Dimension: 10x7.28x2.67 in / 255×185×67.8mm
- Grounding: Common negative
- Battery Input Voltage Range: 8V～32V
- Rated charge Power: 520W/12V 1040W/24V
- RS485 Interface: 5VDC/200mA(RJ45)
- Storage temperature: -20℃～+70℃
- Enclosure: IP33
- Weight: 3.75lbs / 1.7kg
- ACOPOWER 30A MPPT SOLAR CHARGE CONTROLLER
- Nominal system voltage: 12/24VDC Auto
- Battery input voltage range: 8V～32V
- Max.PV input power: 12V/390W, 24V/780W
- Working environment temperature: -25℃～+50℃
- Grounding: Common negative
- Power Terminals: 6AWG(16mm2)
- Dimensions: 228x164x55mm
- Rated charge current: 30A
- Max.PV open circuit voltage: 100VDC
- MPP voltage range: V(BAT+2V)～72V
- Storage temperature range: -35℃～+80℃
- Communication: RS485
- Enclosure: IP30
- Weight: 1.2kg
- Nominal system voltage: 12/24VDC Auto
- Battery input voltage range: 8V～32V
- Max.PV input power: 12V/390W, 24V/780W
- Working environment temperature: -25℃～+50℃
- Grounding: Common negative
- Power Terminals: 6AWG(16mm2)
- Dimensions: 228x164x55mm
- Rated charge current: 30A
- Max.PV open circuit voltage: 100VDC
- MPP voltage range: V(BAT+2V)～72V
- Storage temperature range: -35℃～+80℃
- Communication: RS485
- Enclosure: IP30
- Weight: 1.2kg
- ACOPOWER 20A PWM CHARGE CONTROLLER
- Nominal Voltage: 12V/24V DC
- Rated Charge Current: 20A
- Battery Start Charging Voltage: 3V
- Operating Temperature: -40°F to 140°F
- Terminals: Up to 10 AWG
- Dimensions: 5.59x 3.7x 1.06 inches
- Grounding: Common Negative
- Max. PV Input Voltage: 50V
- Temperature Compensation Coefficient: -24mV/°C
- Storage Temperature: -40°F to 185°F
- Enclosure: IP65
- Weight: 1.1 lbs
- Nominal Voltage: 12V/24V DC
- Rated Charge Current: 20A
- Battery Start Charging Voltage: 3V
- Operating Temperature: -40°F to 140°F
- Terminals: Up to 10 AWG
- Dimensions: 5.59x 3.7x 1.06 inches
- Grounding: Common Negative
- Max. PV Input Voltage: 50V
- Temperature Compensation Coefficient: -24mV/°C
- Storage Temperature: -40°F to 185°F
- Enclosure: IP65
- Weight: 1.1 lbs
- WARRANTY INFORMATION
- Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
- Solar Charge Controllers: The controller itself comes with a 1-year warranty.
- Accessories: 1-year material warranty
- Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
- Solar Charge Controllers: The controller itself comes with a 1-year warranty.
- Accessories: 1-year material warranty
- USER MANUAL
